The LOJ Conversions Gen III/IV Chevrolet LS Engine into Genesis Coupe Swap kit contains everything you need to bolt your LSx engine into your BK1 or BK2 Genesis Coupe. This kit has been engineered specifically for the Genesis to make the installation of your LS engine as simple as possible.

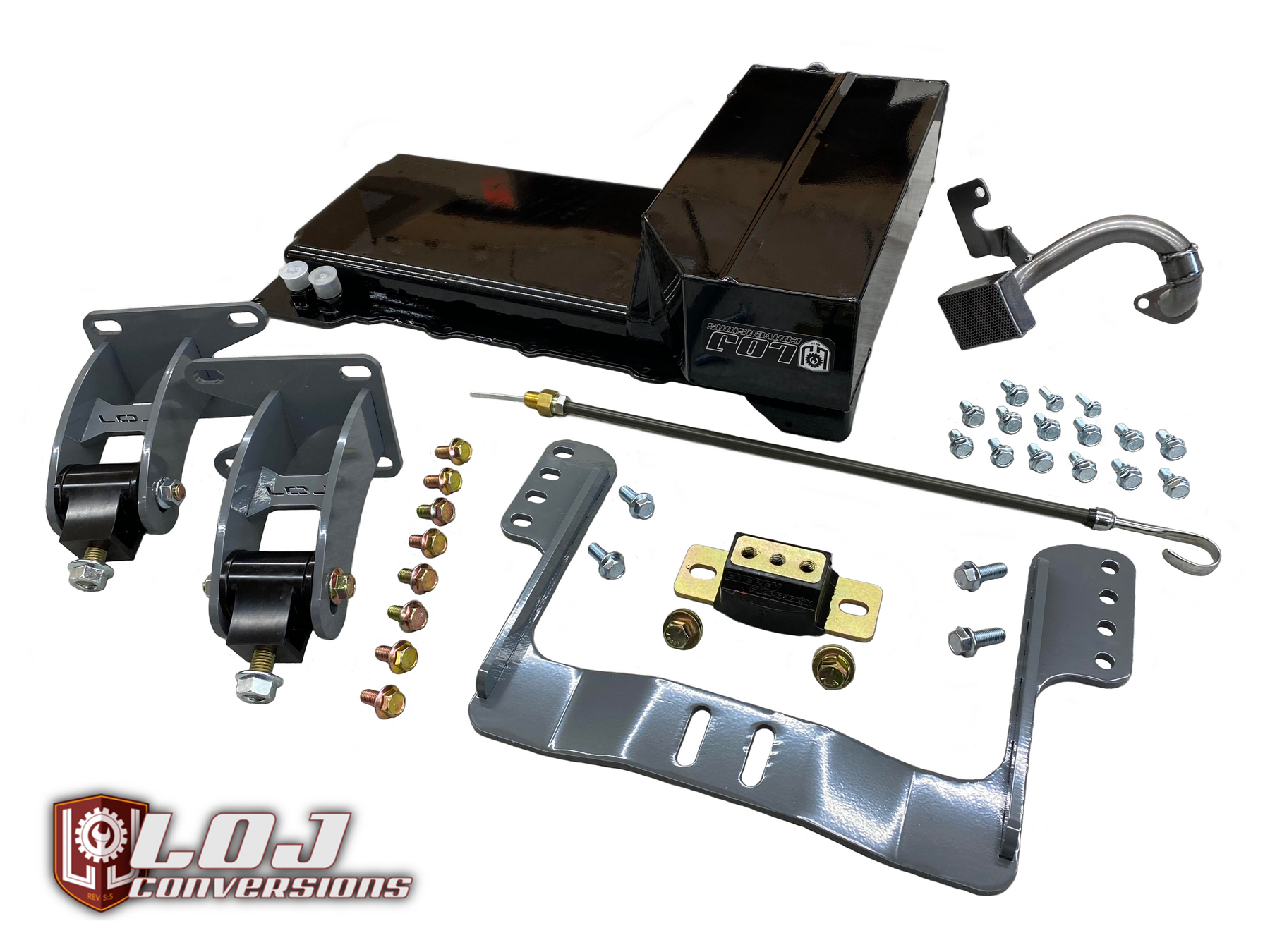

Kit Includes:

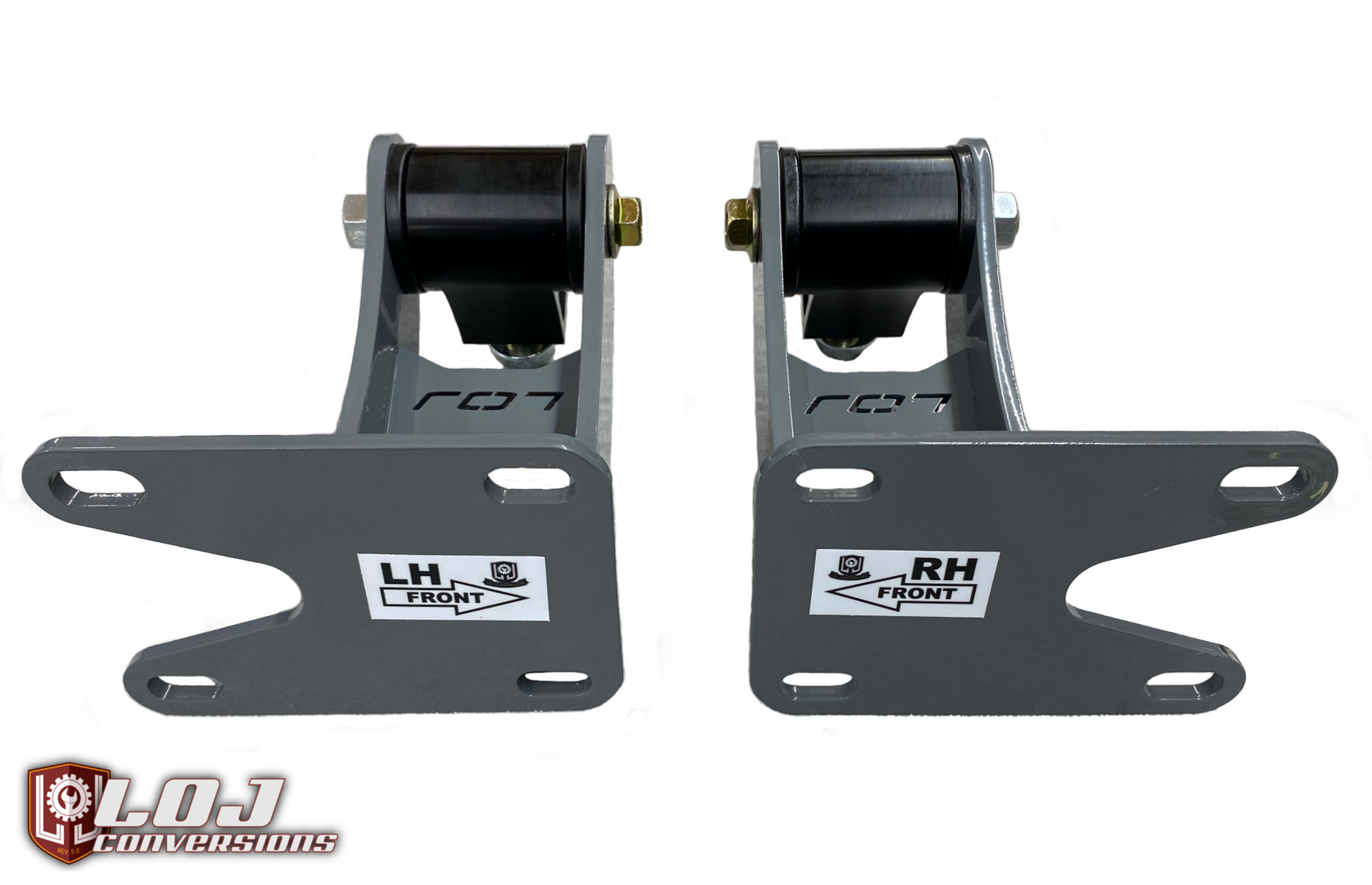

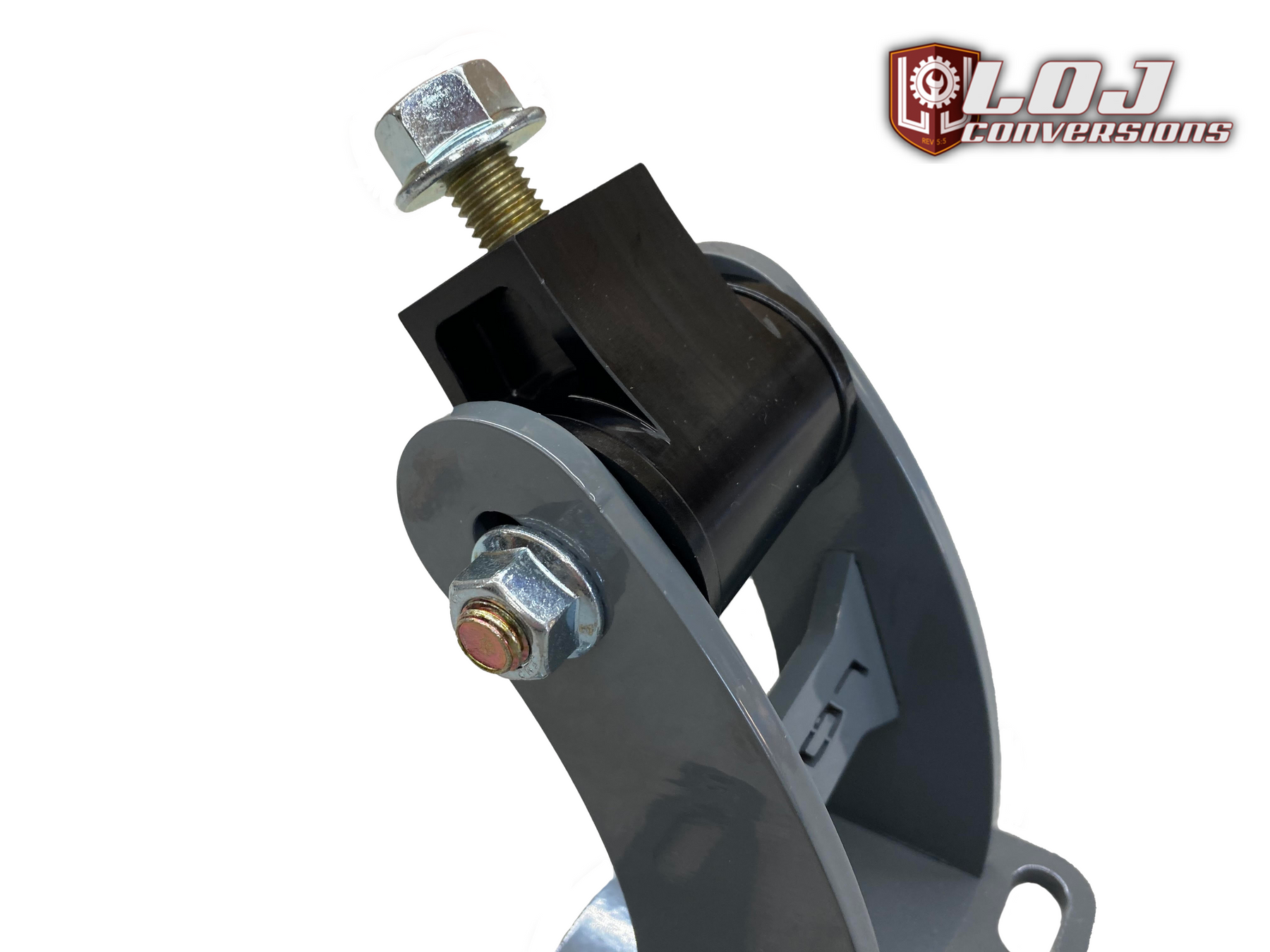

- LOJ LSx to Genesis Motor Mounts (CNC Cut and Bent Motor Mount Brackets, Billet Aluminum Mount Pedestals with Energy Suspension Polyurethane Inserts, Brackets are powdercoated for durability and include hardware)
- LOJ Transmission Mount for 4L80E, Z33 Manual, Z34 Manual, T56, T56 Magnum, 6L80E & 6L90E Transmissions (CNC Cut and Bent, Powdercoated, includes Hardware and Energy Suspension Mount)

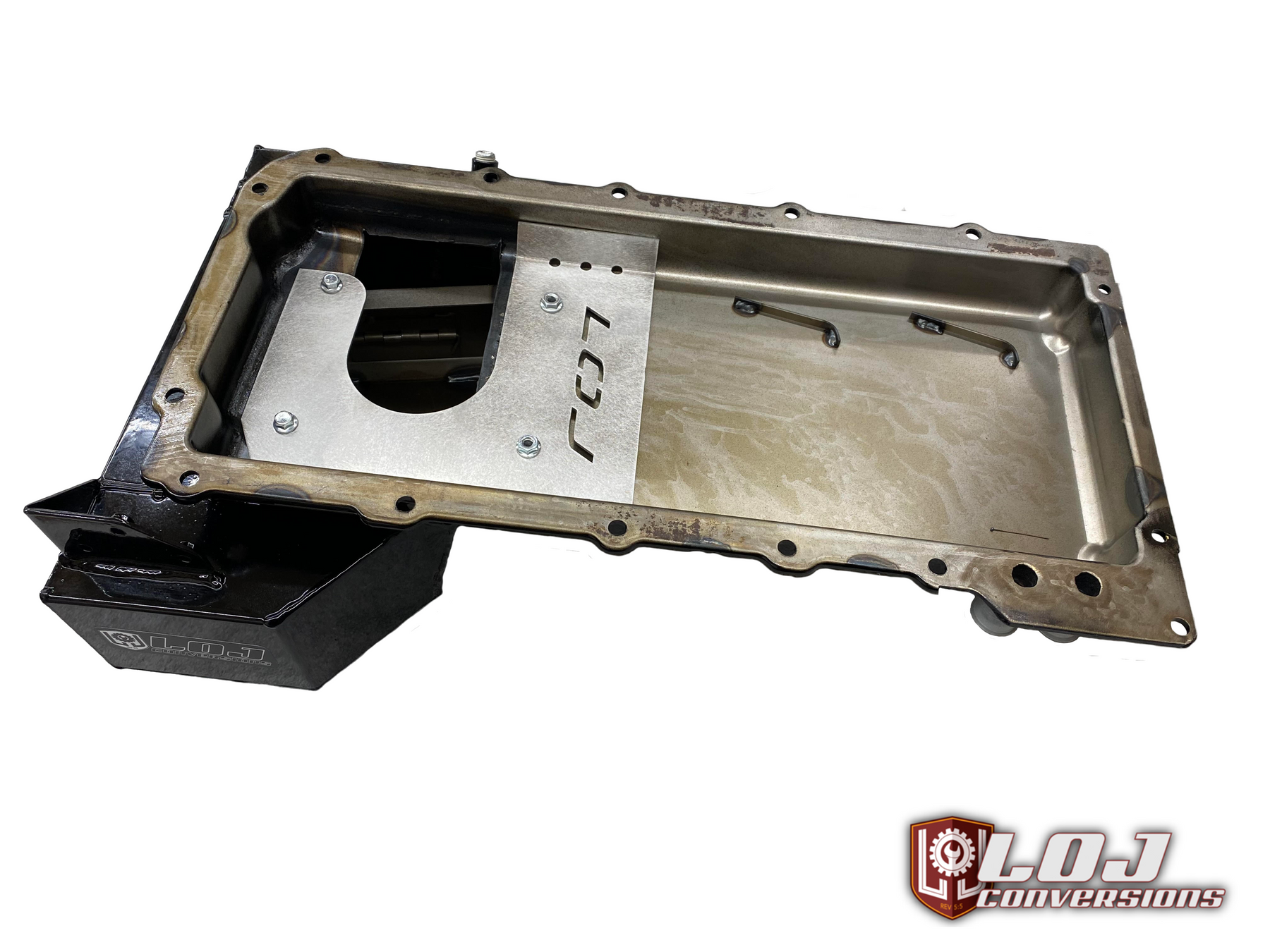

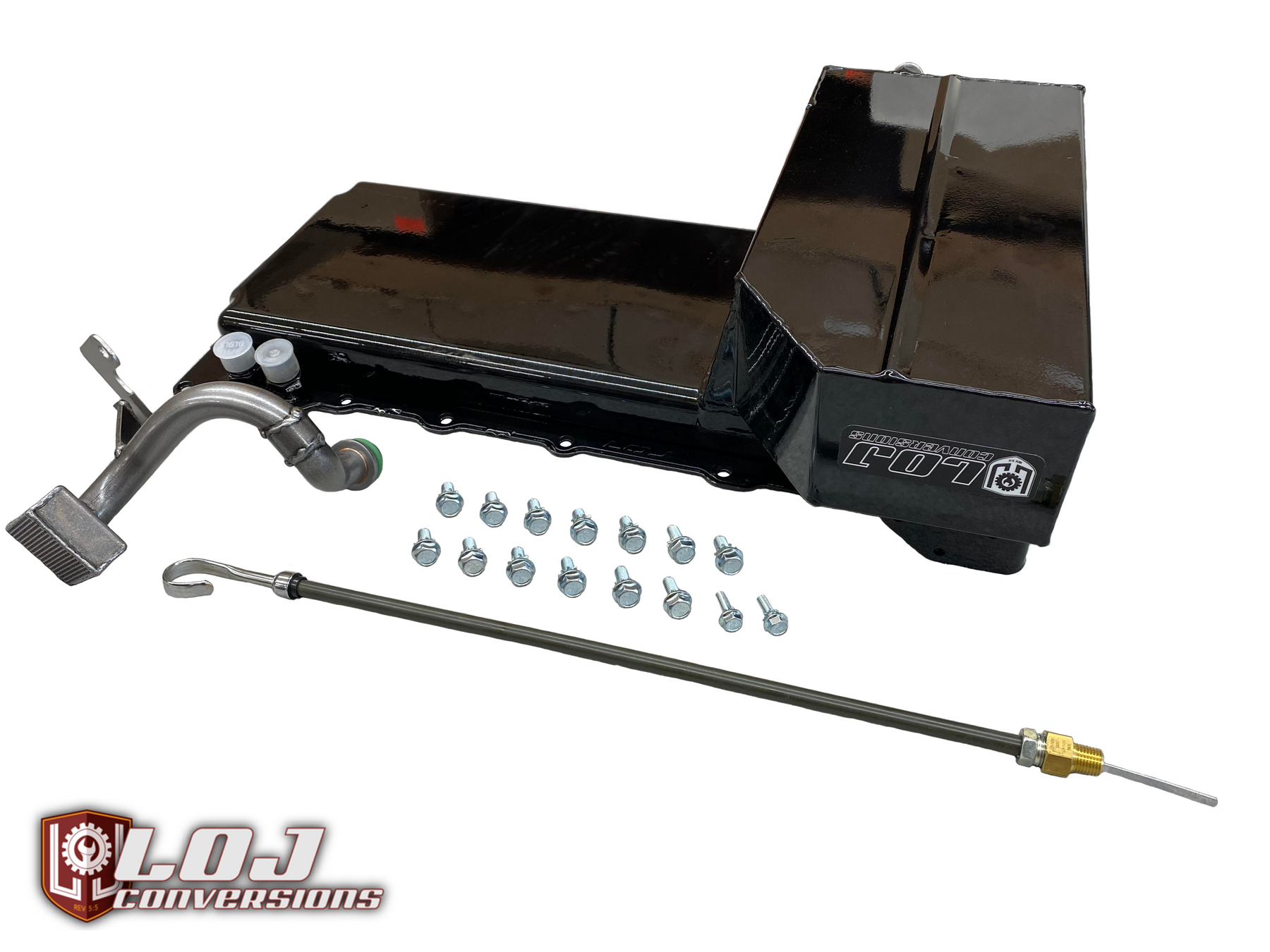

- LOJ Oil Pan (6.5qt* Capacity, Road Race Baffling, Dipstick, Pickup Tube, Gasket Hardware)
-
Kits Optioned with Z33 or Z34 Manual Transmissions Include Transmission Adapter, Flywheel, Starter, & Shortened Shifter Bracket
* Capacity can vary from 6.0 to 7.0 quarts depending on oil filter relocation setup and use of an oil cooler or not
**The 08-12 Genesis Coupe Factory Engine Mount uses three studs from the mount to the subframe, whereas the 13-16 uses a single stud in the center. The LOJ Mounts were designed for use in the later 13-16 chassis, and when purchasing for a BK1, the mounts will include a drill and washer for modifying the BK1 Subframe to fir the BK2 mount.
