LOJ Conversions has partnered with Wilwood Brakes to provide you with a braking upgrade designed to fit under smaller diameter off road wheels for enhanced performance over the stock brakes on these trucks.
The Off Road Brake Kit for 2005 and up Nissan Frontiers, Pathfinders, and Xterras is made to be a 100% bolt-on product. The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of brake kits. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on high performance street/off-road machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Parts are on the shelf but kits are assembled to order based on options selected. Please allow up to 5 business days for all kits to ship. Some components may drop ship directly from Wilwood, while other parts ship directly from LOJ Conversions. This kit is NOT available from anyone other than LOJ Conversions.

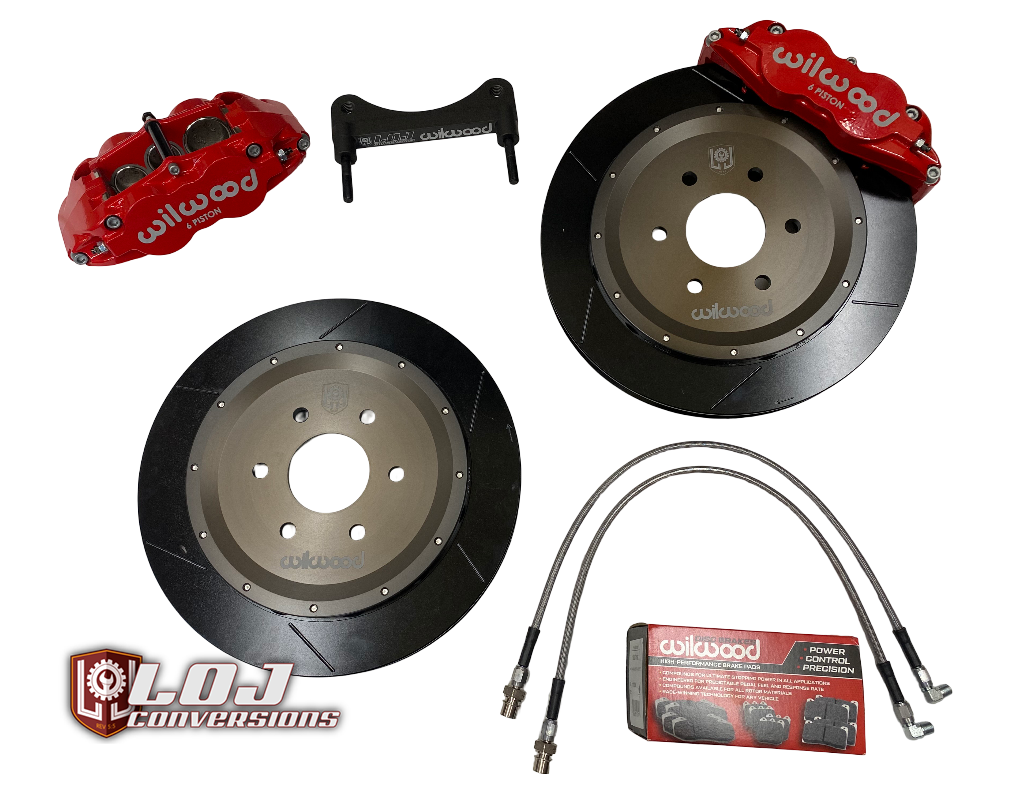

What's Included:

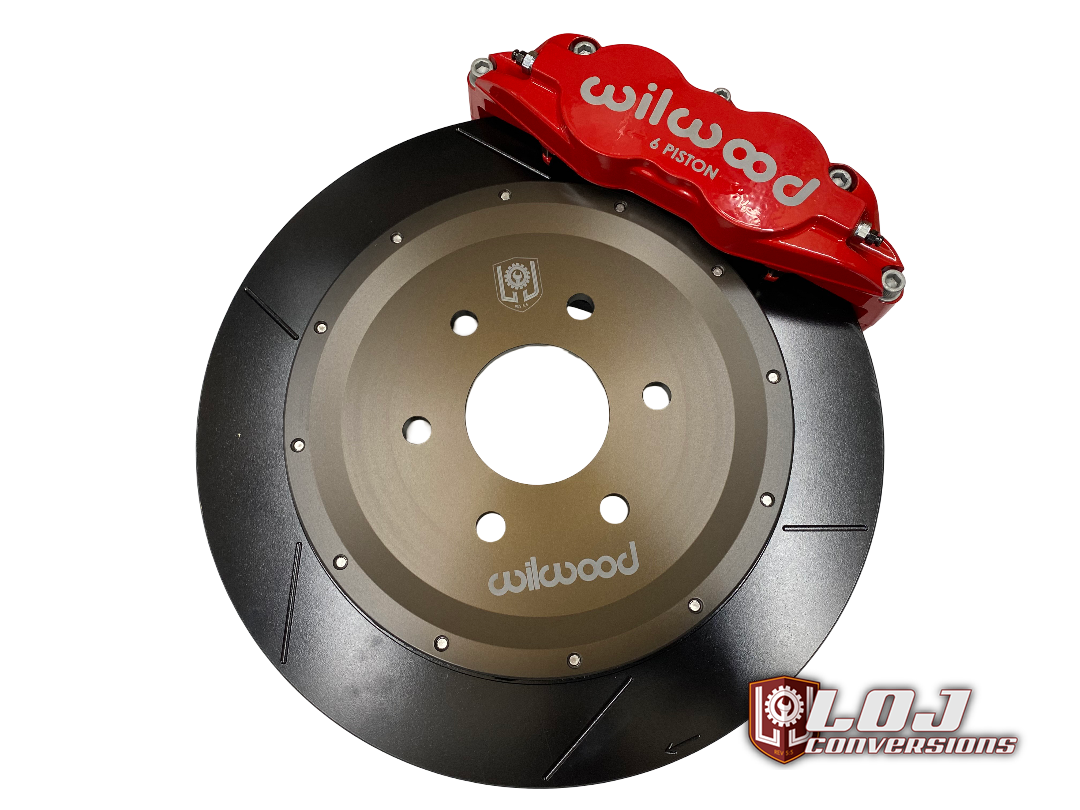

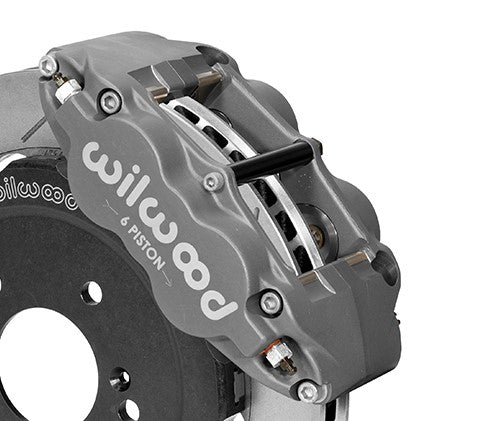

- Wilwood Forged Narrow Superlite 6R 6-Piston Calipers (Left and Right)

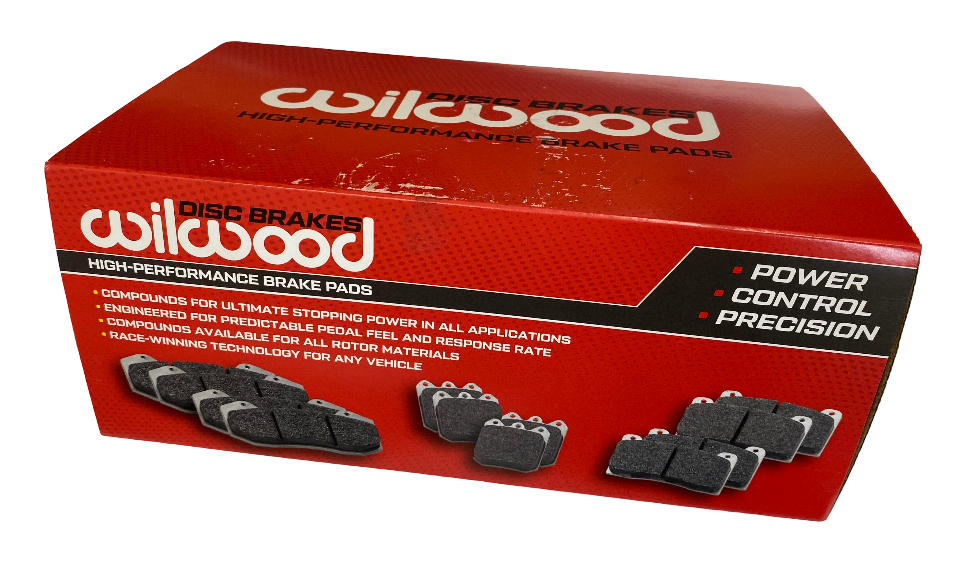

- Wilwood Brake Pads (Three Compound Options, BP10, BP20, BP30)
-
BP10 - Medium friction pad; Gradual response, low wear rate on iron rotors; Low to medium wear rate at low temperatures; Low dust and noise; High performance street compound with improved friction, lower wear and lower dust levels than standard replacement pads
- Street use okay
- Street
- Muscle cars
- Drag race
- Light to medium braking on dirt including late models and modified
-
BP20 - Medium friction pad, highest effective temperature range in medium temperature pad group; Smooth engagement, friction rises with increased temperature; Medium wear rate at high temperature; High performance street and track compound with increased friction and a wider temperature range over BP-10; Baseline pad for track oriented street cars
- Street use okay
- Street
- Autocross
- Track day
- Drag race
- Medium braking dirt and pavement race
-
BP30 - High friction, medium initial response that increases with rotor temp; Medium low temperature response; Low wear rate during sustained high heat braking; Predictable, linear response with excellent modulation; Very high heat fade resistance; For use with iron or steel rotors
- Racing only - Not for street use
- Off-Road Racing
- Road course
- Pavement oval
- Drag racing - stainless steel
- Club sport racers
- Track cars with ABS
-
BP10 - Medium friction pad; Gradual response, low wear rate on iron rotors; Low to medium wear rate at low temperatures; Low dust and noise; High performance street compound with improved friction, lower wear and lower dust levels than standard replacement pads

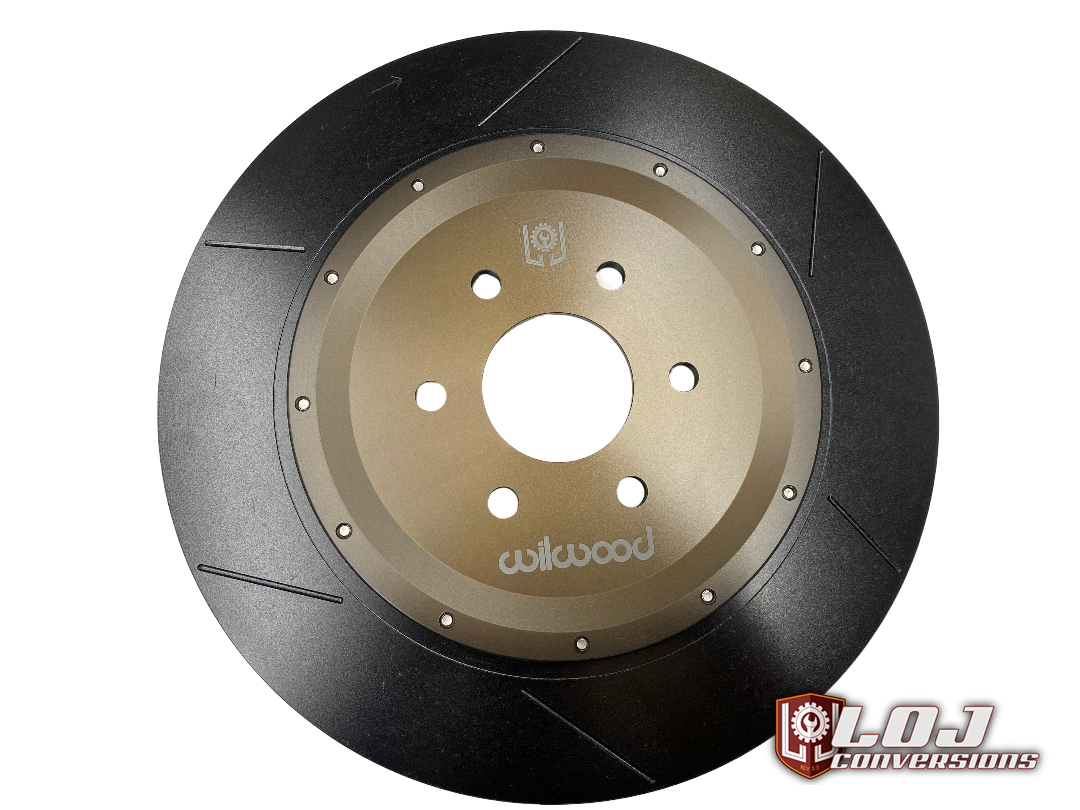

- GT Spec-37 Rotors, Curved Vane, Directional, with 6061-T6 Billet AL Hard Anodized and Laser Engraved Hats
- 6061-T6 Billet AL Caliper Brackets with all required Hardware and Shims
- SS Brake Lines with Required Fittings
Chassis Compatibility:
- 2005-2018 Nissan Xterra 2WD/4WD (N50)
- 2005-2025 Nissan Frontier 2WD/4WD (D40 and D41)
- 2005-2018 Nissan Navara 2WD/4WD (D40)
- 2008-2012 Suzuki Equator 2WD/4WD (D40)
- 2005-2012 Nissan Pathfinder 2WD/4WD (R51)
