The LOJ Conversions Ford Modular / Coyote / Godzilla to Jaguar 8HP / ZF8 8HP70 Transmission Adapter specifically designed for mating to sought after ZF 8-Speed transmissions to your favorite Ford engines. The straight-forward approach and overall simple design will allow a seamless integration of these Ford engines with the Ram truck and Mopar car version of the ZF8. The adapter plate design incorporates a 360* mounting surface for enhanced rigidity.
The included billet aluminum Flexplate is a complete replacement of the factory Ford flexplate. Don't waste your time with torque converter adapters that still rely on the weak stock flexplate. Upgrade to a fully billet CNC machined flexplate from the start for maximum power holding and durability.
The steel converter pilot adapter is included to properly align the converter to the crankshaft.

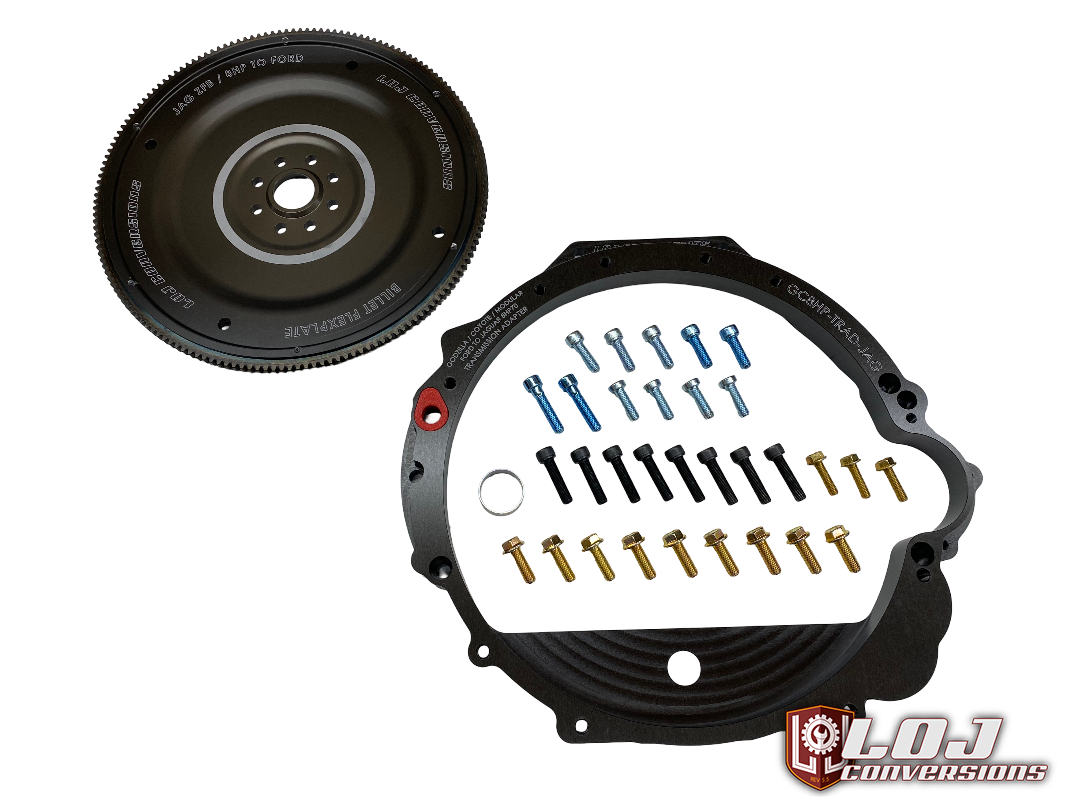

What's Included:

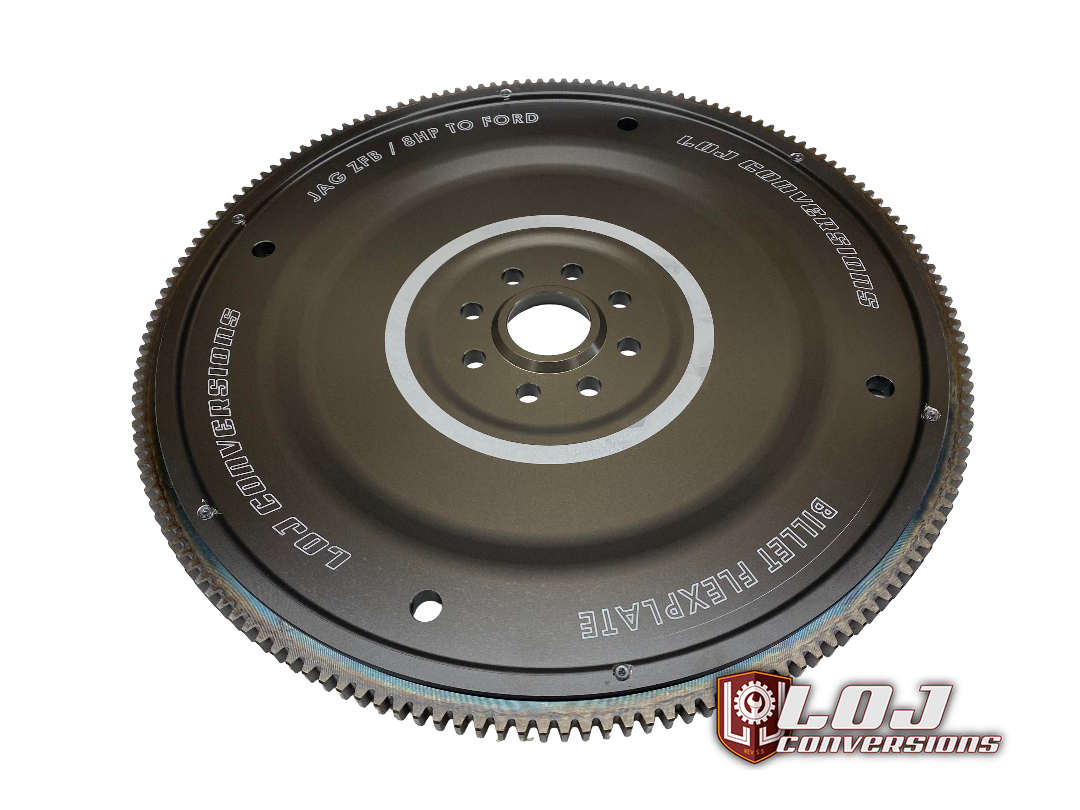

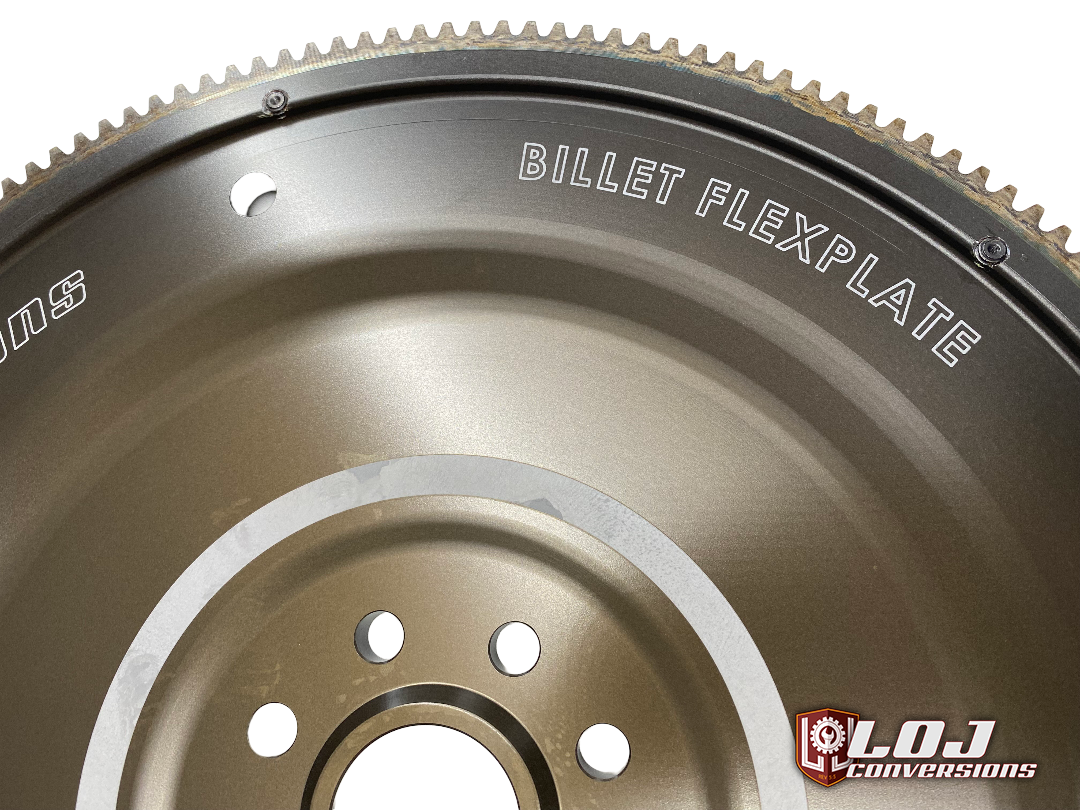

- Billet Aluminum Flexplate, 9lbs Rotating Mass, CNC machined, Type 3 anodized, and laser engraved for long lasting good looks. Includes grade 10.9 Flexplate Bolts.

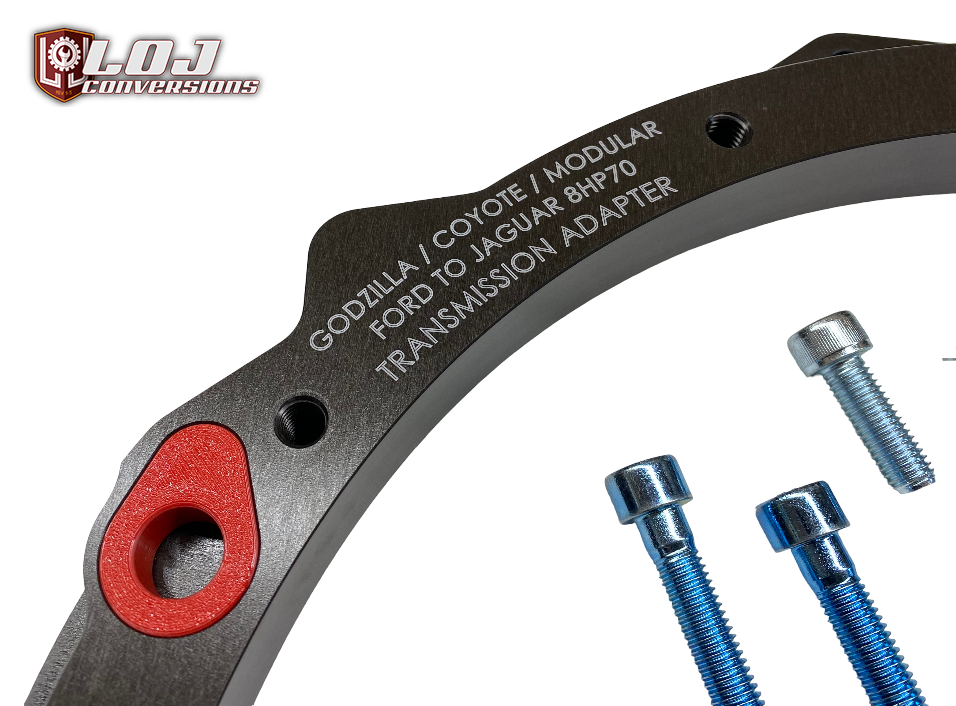

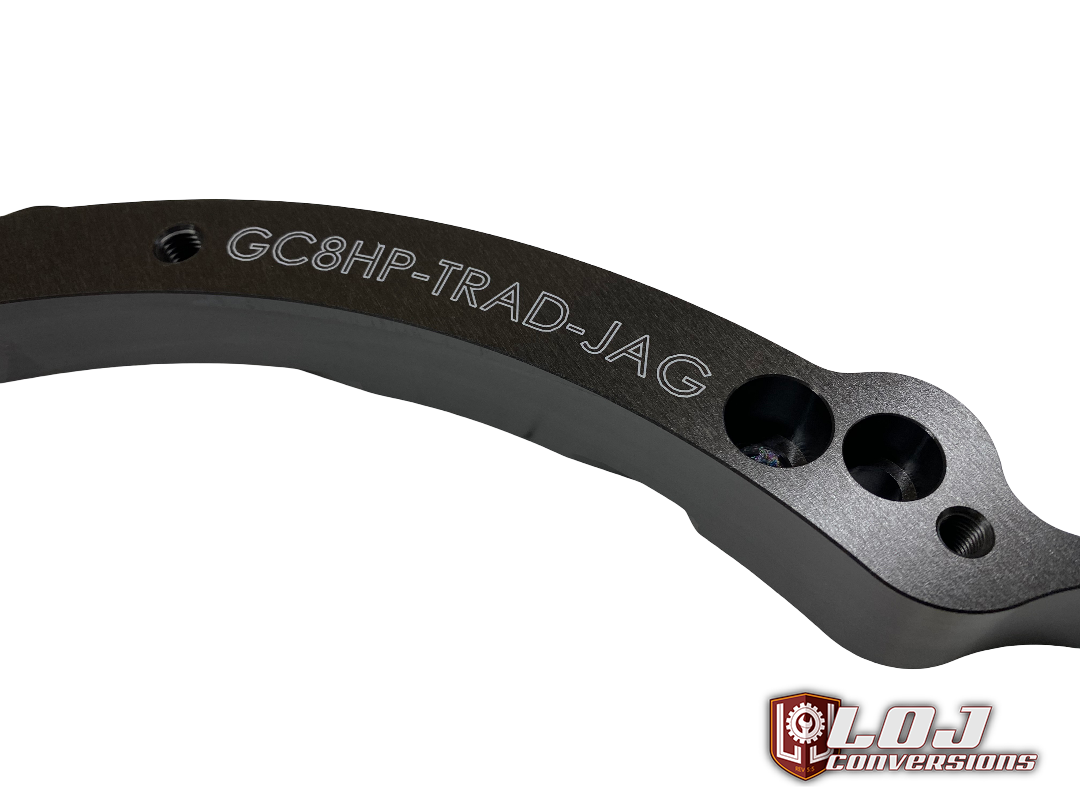

- 6061-T6 Billet Aluminum Transmission Adapter Plate fabricated from USA Sourced Metallurgically Certified Heat Treated Aluminum with integrated dust shield.
- Zinc-Plated Grade 8.8 or Higher Hardware
Engine Compatibility:
- All Ford Modular Motors... 4.6L V8, 5.4L V8, 6.8L V10, etc.
- All Ford Coyote Engine Variants. 5.0L, 5.2L, etc.
- All Ford Godzilla Engines. 6.8L, 7.3L.
Transmission Compatibility
- Jaguar F-Type 3.0L V6 2013-2020
- Jaguar XF 3.0L V6 2013-2020
- Jaguar XJ 3.0L V6 2013-2020
- Land Rover Range Rover Sport 5.0L V8 2014-2017
- Land Rover Range Rover Sport 3.0L V6 2014-2019
Frequently Asked Questions:
-
Will this kit require any modifications to my engine or transmission?
-
- Some. The 8HP transmission bellhousing will need to be modified to clear the snout of the starter on the Ford engine
-
Instructions Coming Soon (PDF)
