Custom Configured Swap Kit for Denis Duparl
This kit uses your stock 350Z Manual Transmission (All VQ35DE)
The CUSTOM MASTER Kit Includes:
- LOJ LSx to 350Z Motor Mounts (CNC Cut and Bent Motor Mount Brackets, Billet Aluminum Mount Pedestals with Energy Suspension Polyurethane Inserts, Brackets are powdercoated for durability and include hardware)

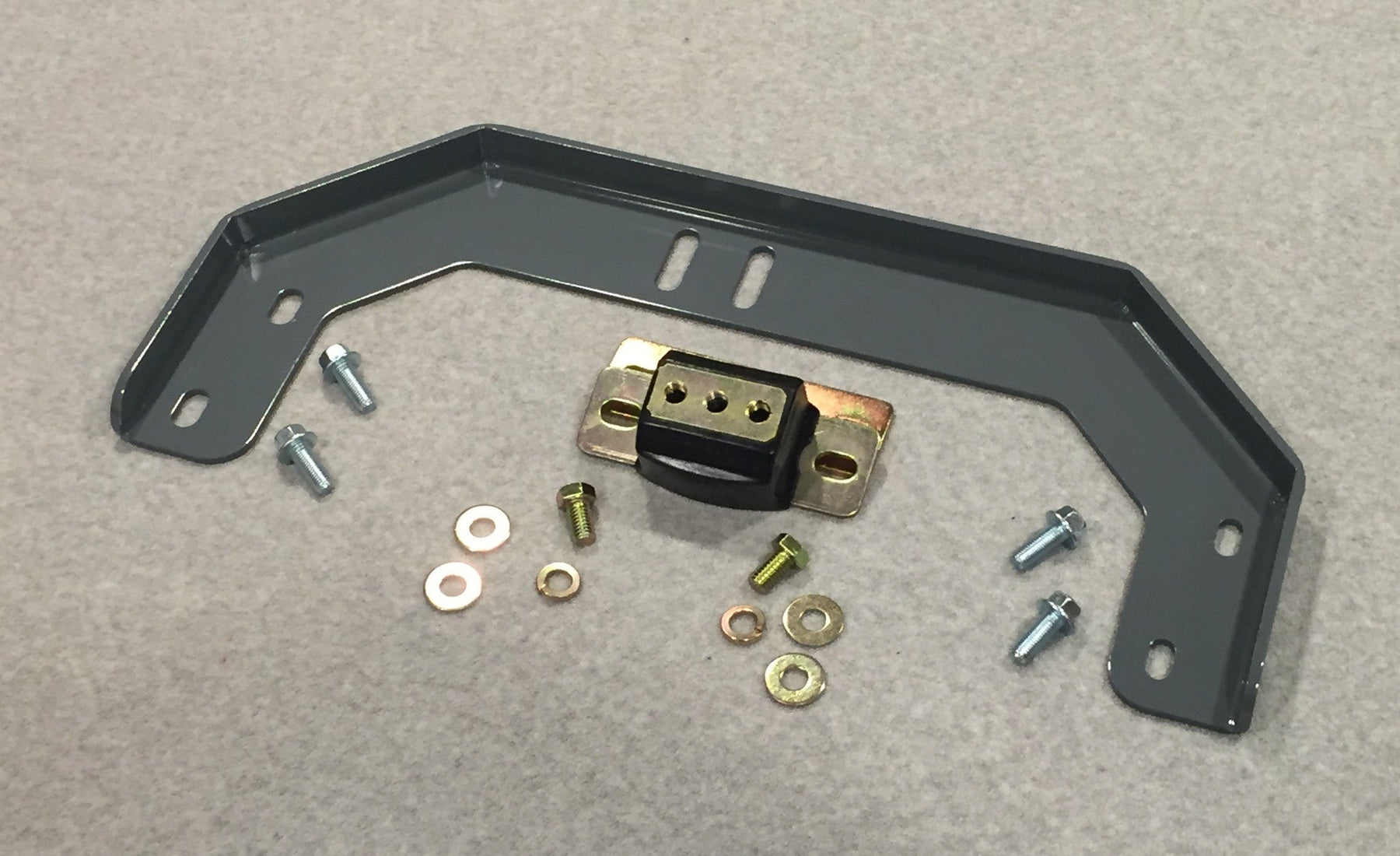

- LOJ 350Z Swap Transmission Mount for 350Z Transmission with Energy Suspension Transmission Mount (Transmission is Relocated to the rear)
- LOJ LSx to 350Z Oil Pan (7qt Capacity, Road Race Baffling, Dipstick, Pickup Tube, Gasket, Hardware.)
- LOJ 350Z Swap Shortened Shift Linkage (to keep shifter near stock location after transmission relocation)
- LOJ Z33 Transmission to LSx Adapter Plate with all hardware.
- LOJ Billet Aluminum Flywheel manufactured by Clutchmasters (Flywheel accepts 350Z Clutch)
- High-Torque Mini Starter
- Includes Steel Driveshaft
- LOJ Conversions 350Z LSx Swap Fuel System. This includes a completely new fuel sending unit assembly with high flow fuel pump and upgraded fuel pressure regulator to feed your LSx engine up to 550WHP on 93 Octane.
- LOJ Conversions LSx to 350Z Accessory drive kit. This allows your stock Power Steering Pump, Alternator, and AC Compressor to bolt directly to the LSx engine while retaining your factory plumbing and wiring. AC Bracket kit INCLUDED.
- Includes Oil Filter Relocation Kit with lightweight -10AN racing hose, fittings, and required parts for installation.
- 350Z Oil Pressure Sender Adapter (Allows the stock 350Z Oil pressure Sender to be installed on the LS engine for factory gauge functionality)
- 350Z External Transmission Speedometer Pickup Kit (Allows GM ECM to see vehicle speed since CD009 transmission does not have a built-in speed sensor)
- LOJ Conversions Engine Swap Headers by Kooks Custom Headers. These are 1-7/8" Primary, 3" Collector, full Stainless Steel Construction with Merge Collectors, O2 bungs, 3/8" Thick Flanges, Hardware, and Gaskets. Headers are TIG welded and flanges are ground flat after construction. Headers are assembled in a CNC fixture for a consistent and perfect fit every time. Headers include a lifetime warranty for the original purchaser.
ATTENTION 2006 350Z OWNERS! - The 2006 350Z has a different steering rack than all other years, the hard lines coming out of the rack interfere with one primary on the drivers side header. This is ONLY on 2006 model 350Z cars, Nissan added a speed sensitive variable assist PS system in 2006 that changed the rack design. They left the system in the 2007-2009 cars as well, but changed the rack again in 2007 and our headers work with this rack as well. If you want to run our headers you need to modify these lines or swap out the steering rack. You can delete the variable assist system by switching to a 2003-2005 rack, or keep the system and use a 2007+ rack.
